M10 156cells 575-595W

Sunrise Energy Co., Ltd.
السعر:
من €0.245 / Wp
النوع: أحادى البلورية
نطاق القدرة: Wp
المنطقة: الصين الصين
اتصل بالشركة المصنعة
توقف إنتاج هذا المنتج.

الوصف:

●M10-182*91mm 595w 158cells 21.31% Non-destructive cutting 11BB Mono half cut Modules;

●TUV/BIS/CQC/CE/CSI/ISO;

●1500V;

●25 year linear performance warranty;

Specially designed for industrial, commercial and centralized ground power plants, a full range of component products match market demand.

خصائص المنتج

رقم النمودج
SR-78M575HL Pro SR-78M580HL Pro SR-78M585HL Pro SR-78M590HL Pro SR-78M595HL Pro
ضمان
ضمان المنتج 12 سنوات
ضمان الطاقة 10 سنة من 92.1% طاقة منتجة ،25 سنة من 83.1% طاقة منتجة
المواصفات الكهربائية عند ظروف الإختبار القياسية
أقصى قدرة ‏(Pmax)
575 Wp 580 Wp 585 Wp 590 Wp 595 Wp
الجهد عن أقصى قدرة ‏(Vmpp)
44.82 V 45.03 V 45.24 V 45.45 V 45.66 V
التيار عند أقصى قدرة ‏(Impp)
12.83 A 12.89 A 12.94 A 13 A 13.06 A
جهد الدائرة المفتوحة ‏(Voc)
53 V 53.24 V 53.49 V 53.74 V 53.99 V
تيار الدائرة القصيرة ‏(Isc)
13.71 A 13.77 A 13.83 A 13.89 A 13.95 A
كفاءة اللوحة
20.59 % 20.77 % 20.95 % 21.13 % 21.31 %
تحمل الطاقة ‏(موجب)
+ 1 % + 1 % + 1 % + 1 % + 1 %
  ظروف الاختبار القياسية : كتلة الهواء AM 1.5 ، الإشعاع 1000 وات/م2، درجة حرارة الخليل 25 درجة مئوية
المواصفات الكهربائية عند درجة حرارة التشغيل الإسمي
أقصى قدرة ‏(Pmax)
434.47 Wp 438.24 Wp 442.02 Wp 445.8 Wp 449.58 Wp
الجهد عن أقصى قدرة ‏(Vmpp)
41.27 V 41.47 V 41.66 V 41.85 V 42.05 V
التيار عند أقصى قدرة ‏(Impp)
10.52 A 10.56 A 10.61 A 10.65 A 10.69 A
جهد الدائرة المفتوحة ‏(Voc)
49.75 V 49.98 V 50.21 V 50.44 V 50.68 V
تيار الدائرة القصيرة ‏(Isc)
11.06 A 11.11 A 11.15 A 11.2 A 11.24 A
درجة الحرارة 45±2 °C
  .حرارة الجو 20 درجة مئوية, سرعة الرياح 1م/ث AM 1.5, 800W/m2 :(NOCT) درجة حرارة التشغيل الإسمي للخلية
المواصفات الحرارية
نطاق درجة حرارة التشغيل -40~85 °C
معامل الحرارة للقدرة القصوى Pmax -0.348 %/°C
معامل الحرارة لجهد الدائرة المفتوحة Voc -0.282 %/°C
معامل الحرارة لتيار الدائرة القصيرة Isc 0.05 %/°C
المواصفات القصوى
أقصى جهد للنظام 1500 V
تحمل فتيل الانصهار 25 A
بيانات المواد

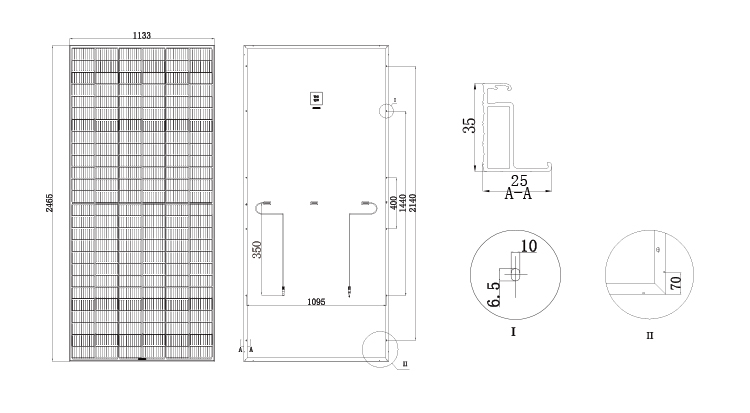

أبعاد اللوح ‏(H/W/D) 2465x1133x35 mm
الوزن 29 kg
نوع الخلية أحادى البلورية
عدد الخلايا 156
نوع الزجاج مقوى
سمك الزجاج 3.2 mm
نوع الإطار المنيوم متأين
ديود صندوق الكهرباء 3
فئة حماية صندوق التوصيل IP 68
المقطع العرضي للكابل 4 mm2
طول الكابل 350 mm
PDF
تحميل PDF المُصنع

11BB M10 182mm pv modules oem 595w 590w 585w 580w 575w 156 cells half cell mono perc solar panel cell

MONO has a complete IV curve cell;

M10 cell size 182*91mm;

MBB reduces power losses;

HALF CUT reduces hot pot losses;

BOS reduces investment costs;

1500v system voltage;

Specially designed for industrial, commercial and centralized ground power plants, a full range of component products match market demand.


Type

SR-78M595HLPro

SR-78M590HLPro

SR-78M585HLPro

SR-78M580HLPro

Efficiency(%)

21.31

21.13

20.95

20.77

Cell Type(mm)

182*91mm (11BB Mono-Crystalline Silicon)

Cells(pcs)

156(6*26)

Diode quantity

3

Cable&Connector

4mm2,MC4 or MC4 compatible,4mm2, EVO2 or EVO2 compatible

Cable length

350mm or as customer's requirements

Automation Product Process

Packaging and Shipping

5 or 7-ply corrugated boxes, reinforced wooden cases with pallets;

Custom made wooden cases are optional;

Ensure safety of all solar modules.

Protect your products in all aspects during transportation;

Dimension(mm)

2465×1133×35mm

Weight(kg)

29kg

Packing(pcs/pallet)

31pcs/pallet

Loading Capacity

496pcs/40HC


Our Project Reference

Deliverry Mode

The transportation

According your demand and the quantity of products, we’ll choose safe and economic transportation for you, including sea, air, land and express.

Company Profile

Intelligent Manufacturing

System Integration

Customization Project

Established in 2006,Sunrise Energy located in Zhonglou Economic Development District, Changzhou, China.Sunrise has 35000m² automatic workshop with 2GW annual capacity. Sunrise suppied high efficient and customized green solar power solution over 50 countries.

16+ Years Photovoltaic field experience

7.2+ GW Solar modules output

50+ Cases Germany,America,Vietnam

80+ Partners Around the world

100+ Patnents Main business , technologies


Certifications

Exhibition

T/T

20% T/T in advance, the banlance will be paid before goods arrive at discharge port.

L/C

20% T/T in advance, the banlance will be against L/C 30 days

By sea

Depart from Shanghai seaport

Delivery time

20-30 days on receipt of advance payment

FAQ

Q: What is payment term?A:T/T 30 days, L/C 30 days.
Q: What is the lead time?
A:Generally it will take about 20 days for production on receipt of advance payment.
Q: What is your monthly capacity?
A:Monthly capacity is about 80MW.Q: How long is the warranty of your products?A:year Product Warranty and 25-year Warranty for Extra Linear Power Output.
