GS-Light Intelligent Tracking System (Independe...
Xiamen Grace Solar New Energy Technology Co., Ltd.| النوع: | متتبع |
|---|---|
| المنطقة: |
الصين
|
الوصف:
Single-row tracking bracket adapts seamlessly to north-south slopes.
Accommodates various string configurations and field sizes.
Cutting-edge AI intelligent controller optimises energy production.
Equipped with robust motor protection features.
System Introduction

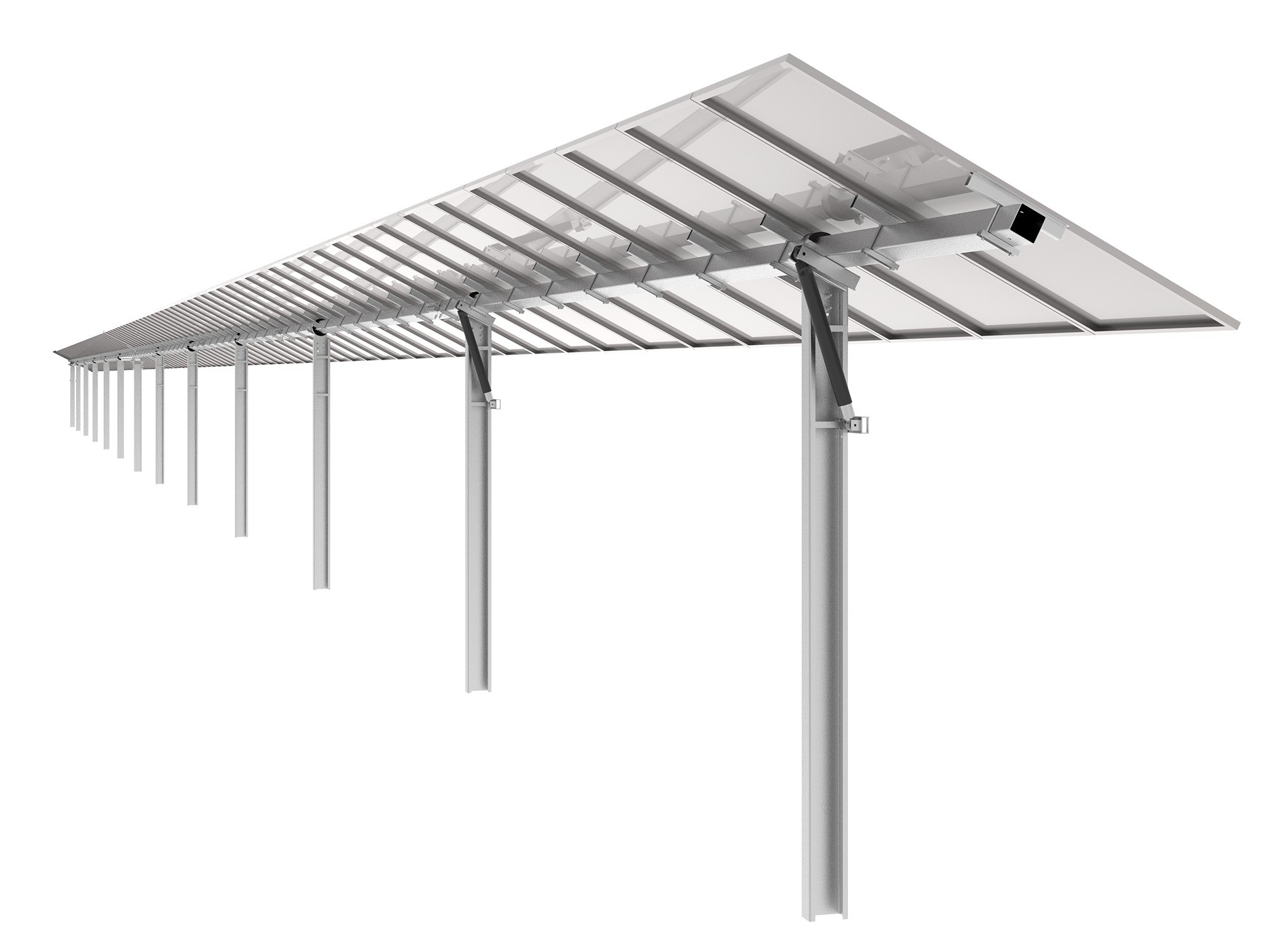

The Gracesol 1P tracking system can adapt to the 20% slope of the North-South and strong wind up to 70m/s. It's designed to install 90 PV modules at most per trackers and it's compatible with PV modules of different sizes. The electronic control adopts the most advanced AI intelligent controller, which can be equipped with self-powered strings and small lithium battery panels.
Suitable Power Plant Project
It is suitable for various power plant projects, especially in power plant projects with irregular land.
Features
· Installation is more convenient;
· Customized quick control system debugging system;
· AI intelligent control system can increase production capacity output by 6%;
· The north-south slope can be adapted to 20%;
· Higher utilization rate of irregular land;
· DC string and lithium battery backup power supply, reducing LCOE cost.
Technical Information
Mechanical Aspect
Number of tracker drive modules
1X90
Number of motors per tracker
1
Tracking range
±60°
Material
Hot-dip galvanized steel + aluminum-magnesium-zinc plate + pre-galvanized
East-west land slope
Unlimited
North-south land slope
< 20%
Module arrangement
Single row Portrait
Ground clearance
> 500mm, (customizable)
Foundation form
Ramming post, PHC pile, Concrete
Standard wind speed
< 47m/s, 3 seconds gust, (customizable)
Protection wind speed
18m/s
Mechanical tracking accuracy
±2°
Land occupation rate
30%
Grounding method
Self-grounding
Electrical Aspect
Drive way
Slew driver
Motor power
150W
Flat time
< 8 minutes
Controller
MCU
Control tracking accuracy
< 2°
Control mode
Independent GPS time control + tilt sensor hybrid control
Limit protection
Mechanical limit + motor hard limit + soft limit
Motor protection
Overheat protection, overcurrent protection, self-locking protection
Operating temperature
-40-+70℃
Protection level
IP65
Power consumption
< 0.02kWh/day
Power supply
String power supply/external power supply
Communication method
LoRa/Zigbee wireless communication or RS485
Signal transmission method
Wired/wireless optional
