RESS Stack 8.64-28.8kWh

RESS Stack 8.64-28.8kWh

REGITEC Solar
السعر:
من €161 / kWh
من €1,700 / الوحدة
نظام التخزين تقنية: LFP (LiFePO4)
السعة الاسمية: 50 Ah
المنطقة: بلجيكا بلجيكا
اتصل بالشركة المصنعة
ملحوظة: سيتم إرسال استفسارك مباشرة إلىREGITEC Solar.

الوصف:

High Voltage stackable battery from 8,64kWh to 28,8kWh

Stackable design with no cable connections between the layers, Just stack and that's it

Battery packs of 2,88kWh, minimum 3 are needed.

Wifi connection

Monitoring by APP

10 years warranty

Compatible with our Hybrid inverters and other brands.

Available from our stock in Belgium

مخزن:
Lichtervelde بلجيكا
المخزون:
800 قِطَع
موقع المستودع: Lichtervelde بلجيكا
الطراز المخزون(قِطَع) اتصل بالشركة المصنعة
8.64kWh 100
11.52kWh 100
14.4kWh 100
17.28kWh 100
20.16kWh 100
23.04kWh 100
25.92kWh 100
28.8kWh 100

خصائص المنتج

رقم النمودج
8.64kWh 11.52kWh 14.4kWh 17.28kWh 20.16kWh 23.04kWh 25.92kWh 28.8kWh
المواصفات
السعر ‏(كيلووات ساعة)
€197 / kWh €184 / kWh €176 / kWh €171 / kWh €167 / kWh €165 / kWh €163 / kWh €161 / kWh
السعر ‏(الوحدة)
€1,700 / الوحدة €2,120 / الوحدة €2,540 / الوحدة €2,960 / الوحدة €3,370 / الوحدة €3,790 / الوحدة €4,210 / الوحدة €4,630 / الوحدة
ضمان المنتوج ‏(الحد الأدنى) 10 سنوات
إعدادات سهل التخزين
نظام التخزين تقنية LFP (LiFePO4)

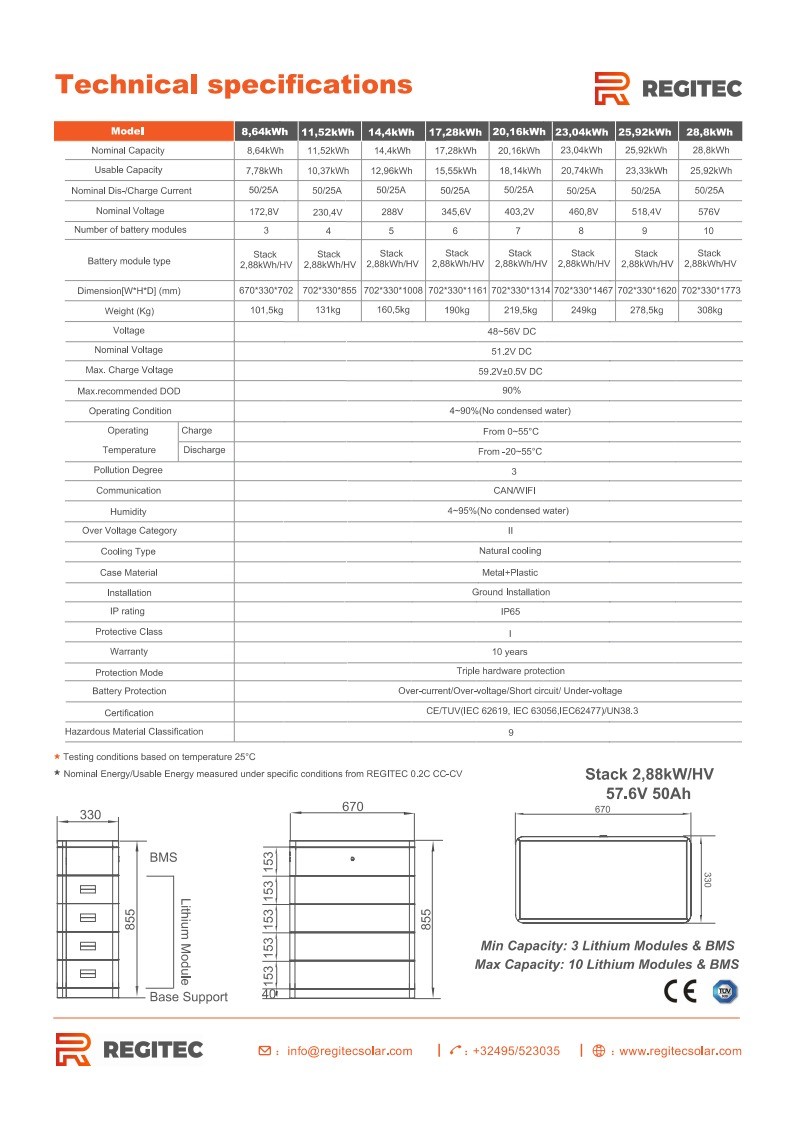

صفحة بيانات البطارية
البيانات الكهربائية
فرق الجهد الاسمي
172.8 V 230.4 V 288 V 345.6 V 403.2 V 460.8 V 518.4 V 576 V
السعة الاسمية
50Ah@1hr 50Ah@1hr 50Ah@1hr 50Ah@1hr 50Ah@1hr 50Ah@1hr 50Ah@1hr 50Ah@1hr
الطاقة الإسمية
8.64 kWh 11.52 kWh 14.4 kWh 17.28 kWh 20.16 kWh 23.04 kWh 25.92 kWh 28.8 kWh
الطاقة القابلة للإستخدام
7.78 kWh 10.37 kWh 12.96 kWh 15.55 kWh 18.14 kWh 20.74 kWh 23.33 kWh 25.92 kWh
أقصى تيار للتفريغ
50 A 50 A 50 A 50 A 50 A 50 A 50 A 50 A
أقصى تيار للشحن
25 A 25 A 25 A 25 A 25 A 25 A 25 A 25 A
العمر المتوقع 6000@90%DOD
معاملات درجة الحرارة
درجة حرارة الشحن -0 ~ +55 ℃
درجة حرارة التفريغ -20 ~ +55 ℃
بيانات عامة
أبعاد ‏(الطول*العرض*الارتفاع)
702x670x330 mm 855x702x330 mm 1008x702x330 mm 1161x702x330 mm 1314x702x330 mm 1467x702x330 mm 1620x702x330 mm 1773x703x330 mm
الوزن
101.5 Kg 131 Kg 160.5 Kg 190 Kg 219.5 Kg 249 Kg 278.5 Kg 308 Kg
طريقة التبريد طبيعي
تواصل CAN, WiFi
المراقبة App
PDF
تحميل PDF المُصنع

REGITEC Solar

Click to show company phone
https://www.regitecsolar.com
بلجيكا
Veldekensstraat 5A, 8810 Lichtervelde
ملحوظة: سيتم إرسال استفسارك مباشرة إلىREGITEC Solar.

جهات اتصال مفيدة

الوصف الشركة

REGITEC is a Belgian company that's on the market since 2010

We have warehouses in Lichtervelde and Torhout Belgium, Örebro Sweden and New Jersey USA

REGITEC uses the latest advanced fully automatic production equipment and precise testing instruments to create reliable, high-quality solar products.

We can produce TOPCon, HJT and PERC cells solar modules with an output till 730W!

Our newest TOPCon All black double glass bifacial solar modules reaches 460Wp with 108cells and has 23% efficiency!

Also our latest Terracotta orange 405W glass glass bifacial with TOPCon has become really attractive in the market

REGITEC also has:

an own inverter range of hybrid and string inverters from 2-110Kw

several LFP battery energy storage ranges of LV and HV:

- Stackable HV version with 2,88kWh batteries with a range of 8,64-28,8kWh

- Wall version LV version of 5 and 10kWh.

- Rack version LV/HV version of 2.4kWh and 5.1kWh.

- CI version of 50/100kWh

- CI version of 100/215kWh, can be extended to 20pcs in parallel to 4.3MW.

- Containerized MWh systems can be made according to the project needs with 0.5C or 1C cells.

Mounting materials:

- Roofhooks

- hanger bolts

- rails

- minirails

- fast mounting clamps with grounding pins

- bolt, nuts, screws

- carport systems

- freefield construction

- ....

Solar cable from 2,5-35mm² with fireclass Cca.

We can offer OEM solutions if needed.
